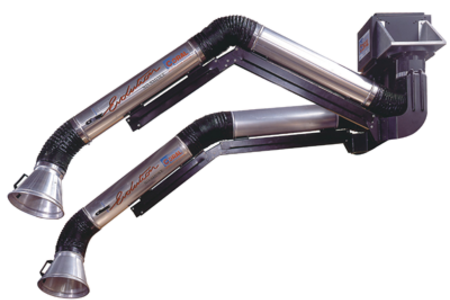

DYNAFLEX
Welding arm for cart mounted units & central systems applications
Application
- Welding Smoke
Overview
The Coral DYNAFLEX arm is our competitively priced option for the extraction of welding fumes from the various production processes.
Working Principle
The polluted air is extracted at the source via a fully articulated hood and passes through the sturdy sheet metal piping (available in zinc-plated, scratch-proof enameled and aluminum) to a high efficiency extraction system or the centralized piping in the plant.
The unique design and construction features of the patented Coral EVOLUTION NO-SMOKE are coupled together by special external articulated joints that allow for quick and easy movement not offered by other lower cost brands. The completely balanced and easy to operate design is unique and the durable construction will provide many years of reliable and trouble-free operation.
360° rotation
The Coral EVOLUTION NO-SMOKE arm is equipped with a metallic rotary bearing which enables rotation through a full 360° if installed on its special stand. The flow of polluted air flows undisturbed through the suction arm and is not hindered by internal joints found on competitive models. Due to the reduced length of the hose used in the elbows, load losses are far lower than that of other similar systems on the market. By offering less restriction in the air flow and lower suction load losses, the installation site can install smaller motors on fans which allows for energy savings, lower air flow speed, which equals less noise.
Dust Collectors • Fume Extractors • Mist Collectors • Industrial Ventilation
Dust Collection System Design • Explosion Venting • System Ductwork
Sheet Metal Fabrication • Turn-Key Installations • Replacement Filters
Replacement Parts • Maintenance Contracts
CONTACT US: 281-316-2500
SALES@PEILLP.COM

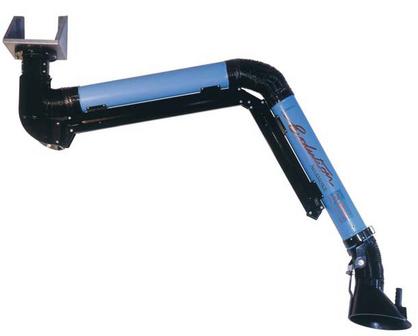

EVOLUTION NO-SMOKE
Fume & Dust Extraction Arm
Overview
The Coral EVOLUTION NO-SMOKE self-supporting suction arm represents the best possible solution for the removal of welding smoke, gas, vapors, aerosol, oil fumes, dust, etc. Coral has specifically designed the EVOLUTION NO-SMOKE to be in full compliance with all standards regarding safety in the workplace for the removal of hazardous fumes and polluting substances from the working environment
Working Principle
The polluted air is extracted at the source via a fully articulated hood and passes through the sturdy sheet metal piping (available in zinc-plated, scratch-proof enameled and aluminum) to a high efficiency extraction system or the centralized piping in the plant.
The unique design and construction features of the patented Coral EVOLUTION NO-SMOKE are coupled together by special external articulated joints that allow for quick and easy movement not offered by other lower cost brands. The completely balanced and easy to operate design is unique and the durable construction will provide many years of reliable and trouble-free operation.
360° Rotation
The Coral EVOLUTION NO-SMOKE arm is equipped with a metallic rotary bearing which enables rotation through a full 360° if installed on its special stand. The flow of polluted air flows undisturbed through the suction arm and is not hindered by internal joints found on competitive models. Due to the reduced length of the hose used in the elbows, load losses are far lower than that of other similar systems on the market. By offering less restriction in the air flow and lower suction load losses, the installation site can install smaller motors on fans which allows for energy savings, lower air flow speed, which equals less noise.
Applications
EXTRACTION ARMS
- Grinding
- Sanding
- Hazardous Dust
- Deburring
- Thermal Cutting
- Sandblasting
- Welding
- Polishing
- Dry Dust
- Polishing
